CTF Dry Drum Magnetic Separator

The CTF type dry drum magnetic separator is a dry separation equipment that plays an important role in the pre-concentration and waste rejection process after fine crushing of iron ore. It is of great significance for the pre-concentration of iron ore and improving the feed grade to the mill.The CTF dry separator is characterized by high separation precision and large throughput

Applications：

It is used for the dry pre-selection and roughing of magnetic materials such as iron ore and steel slag with a particle size of less than 30 mm

Technical Features：

01
Its magnetic system adopts high-performance NdFeB, featuring high magnetic field strength and stable magnetic properties;
02
It has large processing capacity and a wide separation particle size range;
03
The surface of the magnetic drum is made of wear-resistant material, which can effectively extend the service life of the magnetic drum;
04
The speed of the magnetic drum is adjustable to meet the separation requirements of minerals with different properties;
05
It adopts a box structure and modular design, which can effectively reduce dust pollution
06
It has single-drum and double-drum configuration options, with larger processing capacity and higher separation precision;
07
ter of φ800 mm to φ1200 mm and a drum length of 1600 mm to 4000 mm

Classic Cases：

CTF Dry Drum Magnetic Separator

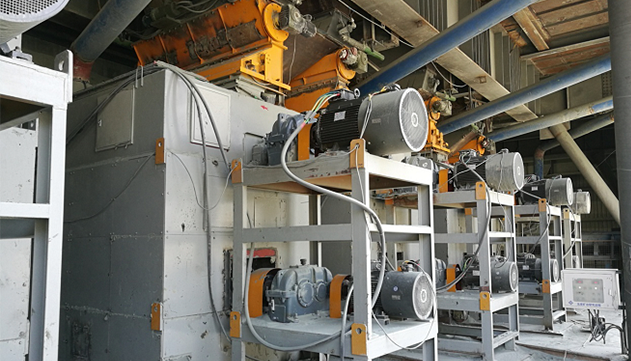

2CTF1030 (1,050x3,000 mm) Double-Drum Dry Magnetic Separator Applied in the Pre-selection and Waste Rejection Stage after High-Pressure Grinding Roll at a Mine in Luanping.

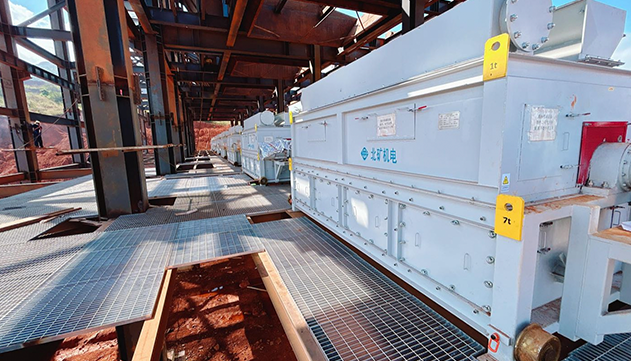

At SIMEC Mining, Australia: After High Pressure Grinding Roll (HPGR), the addition of BGRIMM-MAT's CTF1240 modular complete dry separation equipment achieved a waste rejection rate of over 30%, with a concentrate mFe recovery rate greater than 98%.
