When torrential rains breach a tailings dam, black slurry cascades down, bringing ecological disaster. When a mined-out area suddenly collapses, instantly swallowing roads and farmland. When precious land resources are permanently occupied by ever-expanding tailings storage facilities, a sword of Damocles hangs overhead. These alarming scenarios are the stark manifestation of the three major predicaments faced by traditional tailings management: high safety risks, immense environmental pressure, and low resource utilization. These issues are intertwined, severely threatening regional ecological security and constraining the sustainable development of mining enterprises.

Addressing the Pain Points

The Severe Challenges of Traditional Tailings Management

Underground tailings backfill, as a crucial solution for green mine construction globally, holds great promise. Its core lies in efficiently dewatering and thickening tailings into a paste state, which is then transported to fill mined-out areas. This approach mitigates the risks of tailings dam failure and stope collapse at the source, enabling the resource utilization of tailings. The deep cone paste thickener, as the core equipment in this process, is highly customized and faces numerous application challenges, such as improper model selection, poor adaptability to variations in slurry properties, high reagent consumption, underflow concentration failing to meet standards, turbid overflow, slurry consolidation causing rake bogging, and unstable underflow discharge.

In response to market demand and in line with national strategic directives to "develop new quality productive forces" and "enhance the conservation and comprehensive utilization of mineral resources," BGRIMM-MAT has innovated core components and mastered key integrated technologies. We have developed a high-efficiency, intelligent, green, and reliable domestically-produced deep cone paste thickener. Combined with the advanced tailings backfill process from the BGRIMM Group's Mining Research Institute, it has achieved remarkable results in engineering applications.

Technological Breakthroughs

Four Innovations Forging Core Competitiveness

BGRIMM-MAT's deep cone paste thickener integrates four core technologies to precisely address industry pain points:

1. New Feed Well System: Through flow control technology, it regulates turbulence intensity, creating an optimal hydraulic environment for floc growth and improving flocculation efficiency. The original "staged feeding" technology optimizes the rhythm of the flocculation reaction, reducing reagent consumption by 5% to 20%.

2. Underflow Activation Technology: Based on the shear-thinning principle, a slurry agitation device was developed that significantly reduces the yield stress of the underflow, enhances its fluidity, ensures uniform and stable discharge, and prevents underflow consolidation and rake bogging.

3. Efficient Drainage Technology for Entrapped Water in the Mud Layer: Based on percolation theory, a technology for promoting the drainage of entrapped water in the underflow was developed. By constructing stable water drainage channels, it improves the dewatering efficiency during the compression settling process and increases the underflow concentration, with particularly significant effects on fine-particle slurries.

4. Intelligent Control System: Through real-time online monitoring and intelligent analysis of operating status and material parameters, the system continuously optimizes and adjusts the equipment's operating mode, achieving autonomous optimized operation and unmanned attendance.

Typical Cases

Customized Design to Meet Personalized Scenario Needs

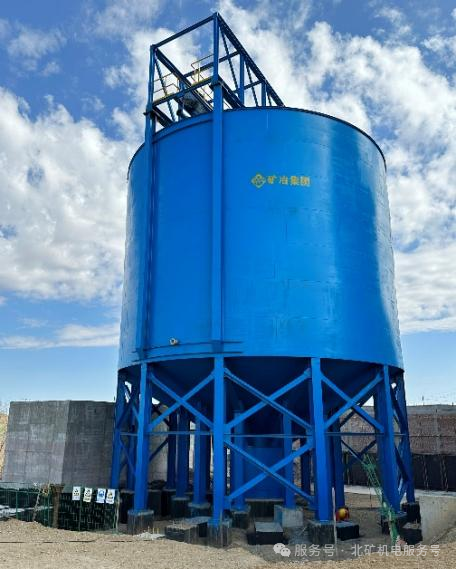

A Copper-Nickel Mine in Xinjiang

Project Features: Settling of micro-fine full tailings

Equipment Model: DCT-14 Deep Cone Paste Thickener

Outstanding Performance: Three consecutive years of zero-failure operation; underflow concentration stable at 68%.

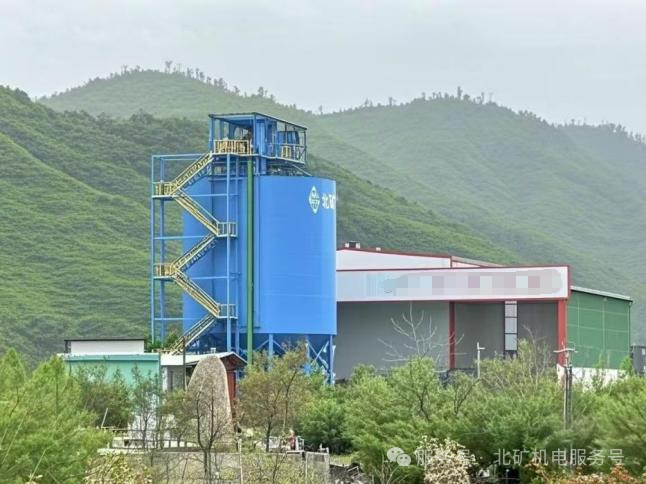

A Gold Mine in Songxian County

Project Features: Alternating treatment of primary and oxidized ore tailings

Equipment Model: DCT-12 Deep Cone Paste Thickener

Flexible Response: Successfully handles two types of tailings with vastly different properties, ensuring both underflow concentration and overflow turbidity meet standards, demonstrating strong adaptability and stability.

A Copper Mine in Jiangxi

Project Features: Optimization and retrofit of an imported brand deep cone paste thickener

Equipment Model: 18m diameter deep cone paste thickener

Performance Enhancement: After replacing and upgrading core components, operating indicators, equipment stability, and reliability were significantly improved.

Industry Empowerment

Providing Equipment Support for Green Mine Construction

BGRIMM-MAT provides both complete deep cone paste thickener units and optimization and upgrade services for existing equipment. To date, we have been granted 5 invention patents and 3 utility model patents, mastering the complete set of core technologies for paste thickeners with fully independent intellectual property rights.

This technology and equipment, through a threefold synergy of technological innovation, cost reduction, and low-carbon energy savings, provide technical and equipment assurance for promoting the green development of mineral resources. It helps mining enterprises reduce operating costs, eliminate safety hazards, decrease their environmental footprint, and free up land resources.

In the future, BGRIMM-MAT will continue to deepen technological R&D and industrial collaboration by: promoting intelligent iteration of technology to upgrade the intelligence level of core equipment; expanding diversified application scenarios to cover a broader range of mining needs and emerging fields; and building a synergistic industrial ecosystem by establishing an innovation consortium with deep integration of industry, academia, research, and application. BGRIMM-MAT is committed to providing high-efficiency technical equipment and solutions for the comprehensive development and utilization of mineral resources, assisting mining enterprises in building green and smart mines.
