Flash flotation cells are generally used to recover precious metals from the cyclone underflow in the grinding-classification circuit, aiming for early recovery of valuables, preventing over-grinding, reducing grinding power consumption, and improving flotation recovery rates.

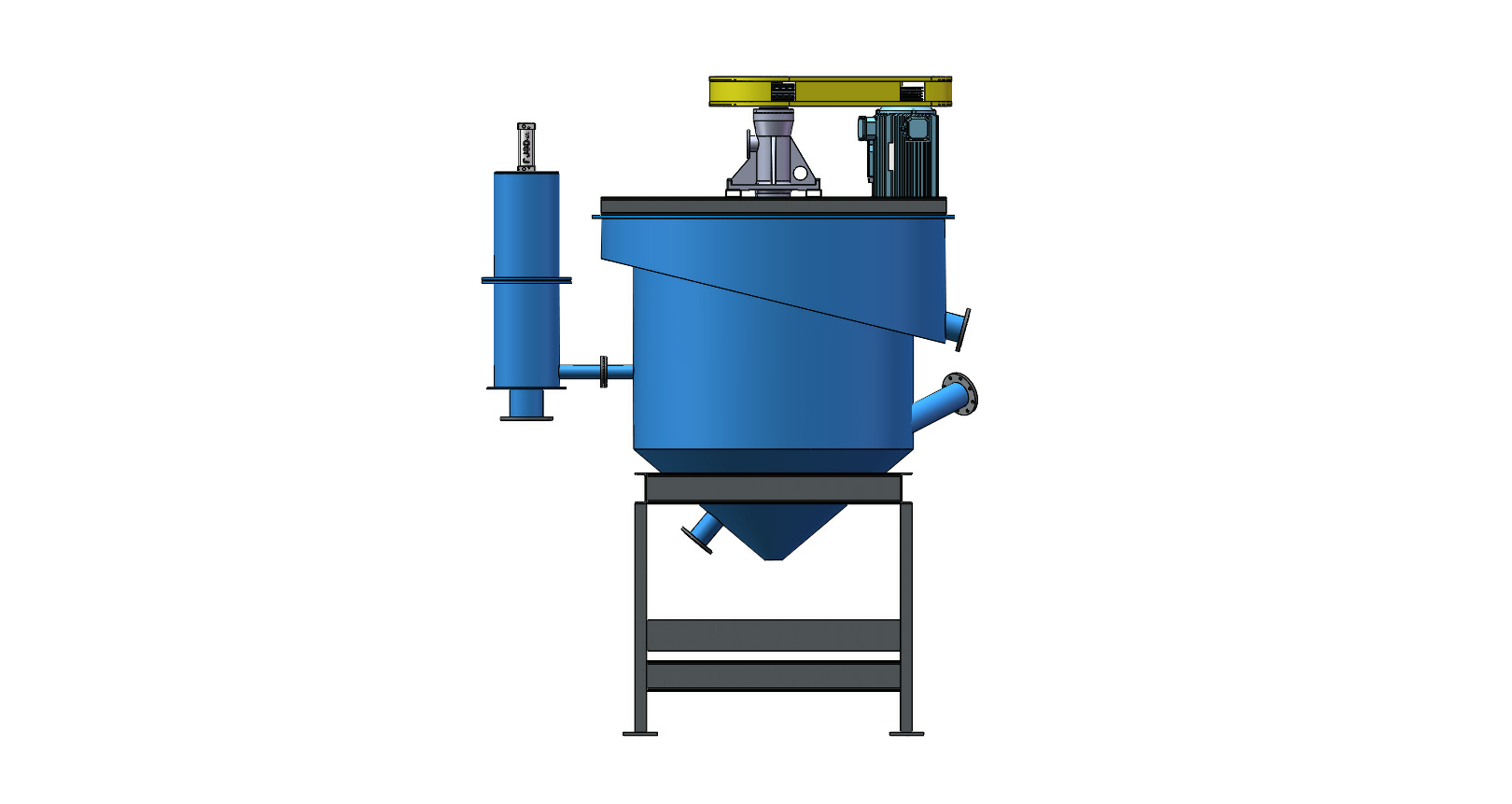

YX Flash Flotation Cell volume: 1-50 m³. A single 50 m³ unit can achieve a maximum slurry throughput of  20–50 m³/min.

• 01

  Strong adaptability to the high-concentration, coarse-particle conditions of cyclone underflow, with excellent flotation performance.
• 02

  Unique feed and discharge structure; cyclonic feeding achieves centrifugal classification and improves internal concentration control.
• 03

  Tangential feeding achieves centrifugal classification, promoting the direct discharge of overly coarse particles from the tank bottom and maintaining mechanical stability.
• 04

  Conical bottom tank combined with a concentration adjustment device enhances stratification induction, creates internal functional zones, and fosters a suitable separation environment.
• 05

  Large froth cone increases froth velocity and reduces the froth travel distance, ensuring a high recovery rate.
• 06

  Impeller speed is controlled by a variable frequency drive, balancing the recovery of both coarse and fine particles and enhancing process adaptability.
• 07

  Dual-valve split level control for middlings and tailings counteracts feed fluctuations and stabilizes the grinding circuit process.
• 08

  Coordinated action of cone valves and pinch valves improves level control.

• YX-4 Flotation Cell applied at a Jiangxi Concentrator

• YX-4 Flotation Cell applied at a Jiangxi Concentrator
