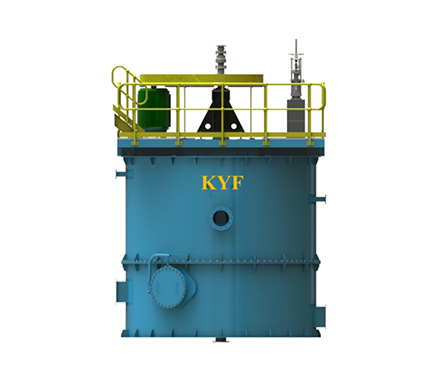

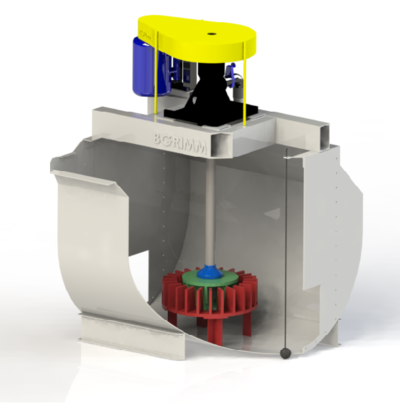

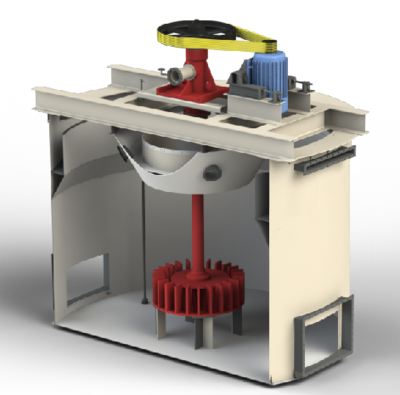

The KYF aerated mechanical stirring flotation cell, developed and manufactured by BGRIMM, is a major achievement in China's flotation equipment field. It has been widely applied in industrial sectors at home and abroad, with a total installation of several thousand units.This flotation cell has been widely recognized and applied worldwide due to its outstanding performance and broad adaptability.

The KYF flotation cell comes in a complete range of specifications, with effective volumes ranging from 0.5 m³ to 680 m³, which can meet the needs of industrial production of different scales.With its high separation efficiency, energy-saving and consumption-reducing characteristics, as well as excellent mechanical and process performance, the KYF flotation cell plays an important role in the separation of non-ferrous metals, ferrous metals, and non-metallic minerals.

• 01

  Excellent flotation indicators
• 02

  Capable of 24-hour full-load operation startup
• 03

  Simple foundation structure, small floor space, and easy installation, operation, and maintenance
• 04

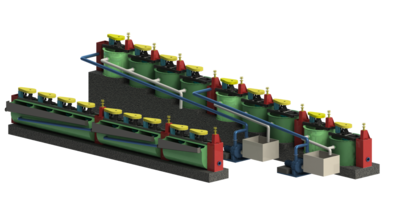

  Flexible configuration modes, with both stepped and horizontal arrangements available
• 05

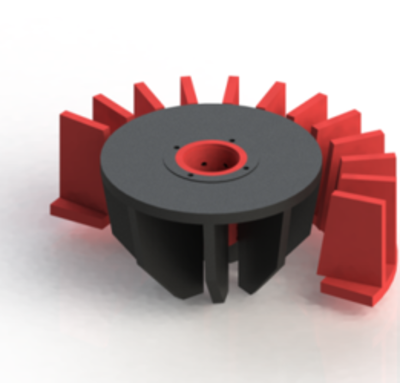

  The impeller features a flat/arc inverted frustum structure with backward-inclined blades, offering high flow rate, low head, large cross-sectional area of air passage, low power consumption, and reduced air usage
• 06

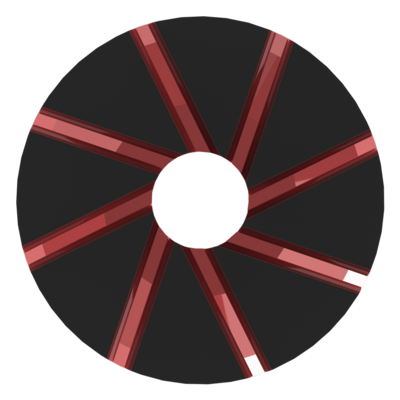

  The directly suspended open-vane stator, with radially distributed blades, exhibits low damping and excellent flow stabilization performance, eliminating the need for additional stabilizer plates on the outer wall of the tank The wear-resistant areas of the blades are designed based on fluid dynamics, ensuring a long service life

• KYF-320 Flotation Cell at a Copper Mine in Peru

• KYF-160 Flotation Cell at an Iron Ore Mine in Peru

• HIF-680m³ Flotation Cell for Copper Tailings Retreatment in Jiangxi

• A Molybdenum Mine in Yichun
