Inheriting the advantages of the classic KYF flotation cell, the HIF flotation cell is a new-generation large-scale aerated mechanical stirring flotation cell. It can be used for roughing, scavenging, and cleaning operations, with a maximum specification of 680 m³, which can meet the needs of mines with an annual output of over ten million tons. It is suitable for the recovery of coarse-grained minerals in non-ferrous metals, ferrous metals, and non-metallic minerals, and can effectively improve the recovery rate of dissociated or poorly intergrown coarse-grained minerals

• 01

  The HIF series flotation cell adopts a new architecture with five hydrodynamic zones, namely the circulation zone, mixing zone, transport zone, separation zone, and froth zone of the flotation cell
• 02

  The impeller circulation rate of a single unit is increased by 10%-20%, significantly improving mineralization efficiency. The short transport zone is conducive to the recovery of coarse-grained intergrown minerals
• 03

  The flotation cell has a low inlet air pressure, 15%-25% lower than that of the standard KYF flotation cell, leading to low power consumption of the blower
• 04

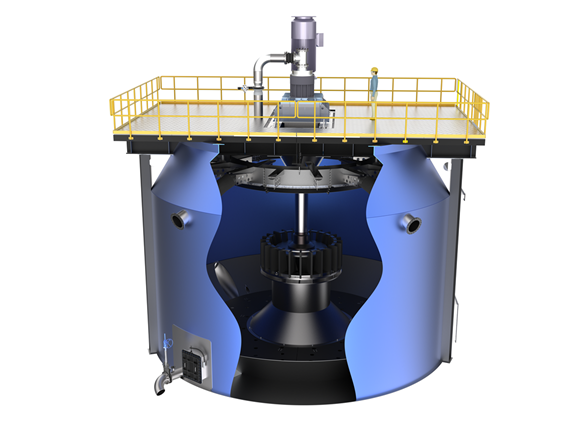

  The centrally installed impeller, used in conjunction with a draft tube and bottom circulation channels, provides a larger circulation volume and strong full-load startup capability
• 05

  The equal-slope froth launder design reduces the probability of froth deposition;
• 06

  The overflow weir length is designed to have strong adaptability to production fluctuations, accelerating froth recovery

• 680 m³ Flotation Cell at a Copper Mine in Jiangxi

• 680m³ Flotation Cell at a Copper Mine in Yunnan
