GF Flotation Cell

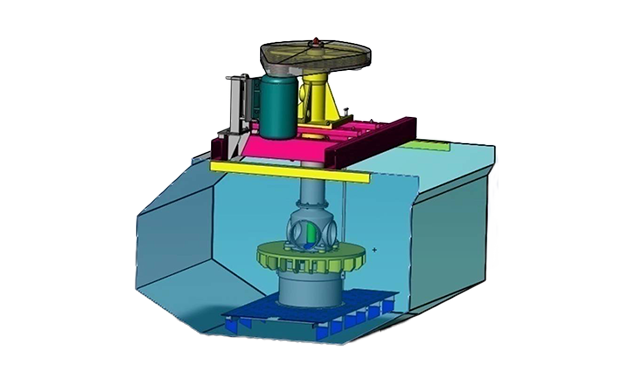

The GF type flotation cell is a mechanical agitation flotation machine with triple functions of self-aspirating air, self-priming slurry, and flotation. It allows for a horizontal configuration without auxiliary equipment like blowers and pumps.


Volume: 0.2 m³ to 40 m³

Applications：
Suitable for recovering valuable minerals from non-ferrous metals, ferrous metals, precious metals, non-metallic minerals, and chemical raw materials, with particularly wide application in precious metal processing
Technical Features：
  • 01
    Single cone disc semi-enclosed impeller provides strong agitation and large slurry circulation volume.
  • 02
    Backward-angled cover plate offers strong flow stabilization and a simple tank structure.
  • 03
    Features downward slurry circulation within the tank, self-aspirating air, self-priming slurry, horizontal configuration, and self-return of middlings, eliminating the need for auxiliary equipment.
  • 04
    Large, adjustable air intake and low energy consumption.
  • 05
    Low impeller peripheral speed and long service life of wear parts.
  • 06
    Superior slurry circulation and level stability within the tank, with no slurry swirling or surface turbulence (“boiling”)
