BF Flotation Cell

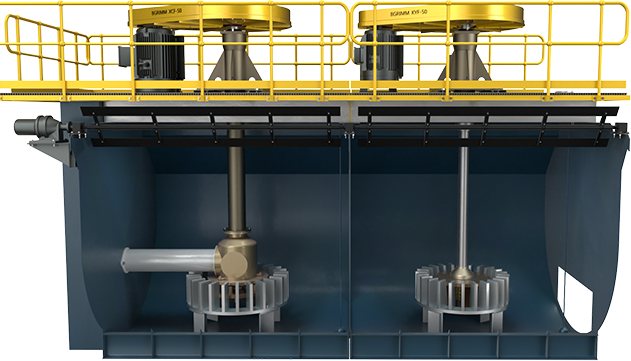

The BF type flotation cell is a mechanical agitation flotation machine with triple functions of self-aspirating air, self-priming slurry, and flotation. It allows for a horizontal configuration without auxiliary equipment like blowers and pumps.


Volume: 0.2 m³ to 40 m³

Applications：
Suitable for recovering valuable minerals from non-ferrous metals, ferrous metals, precious metals, non-metallic minerals, and chemical raw materials.
Technical Features：
  • 01

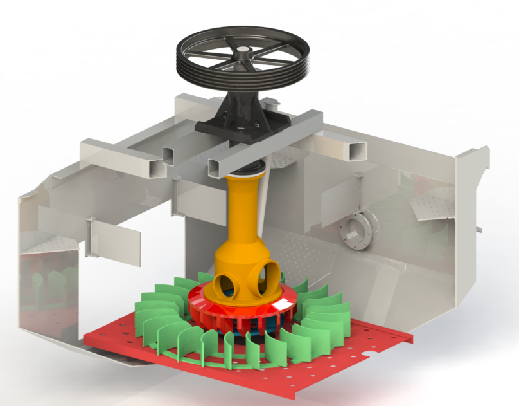

    Enclosed, backward-inclined blade impeller ensures low energy consumption, low slurry pressure head, and a stable pulp level.
  • 02
    Features downward slurry circulation within the tank, self-aspirating air, self-priming slurry, horizontal configuration, and self-return of middlings, eliminating the need for auxiliary equipment.
  • 03
    Large and adjustable air intake.
  • 04
    Low impeller peripheral speed and long service life of wear parts.
  • 05
    Wide radial clearance between the impeller and cover plate; air intake remains stable even as the clearance increases due to wear.
  • 06
    Slurry circulates downwards in a fixed flow pattern within the tank, which is conducive to the suspension of coarse particles.
  • 07
    Level control options include automatic, electric, and manual modes, selectable according to user needs. A full range of specifications is available to meet roughing, scavenging, and cleaning requirements for small and medium-sized concentrators.
