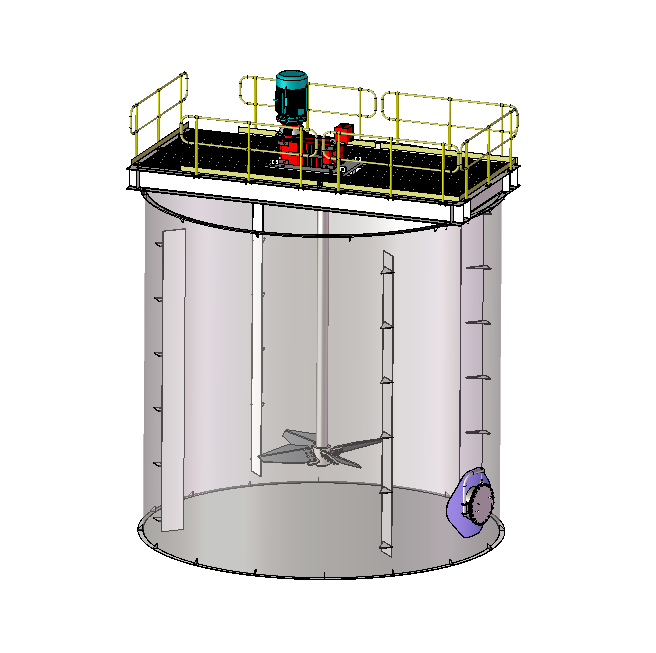

Slurry conditioning tanks are suitable for slurry conditioning operations before flotation in concentrators. BGRIMM-MAT's slurry conditioning tanks are classified into models BK, GBK, ZBK, and ZSBK according to the transmission form, with double-impeller structure and single-impeller circulation barrel structure, and are widely used in concentrators around the world. It is available in a wide range of specifications to meet the needs of concentrators of different scales, with a tank body diameter ranging from 1 m to 10 m

• 01

  It adopts a circulation barrel + screw-propeller type impeller, featuring low energy consumption per unit flow rate
• 02

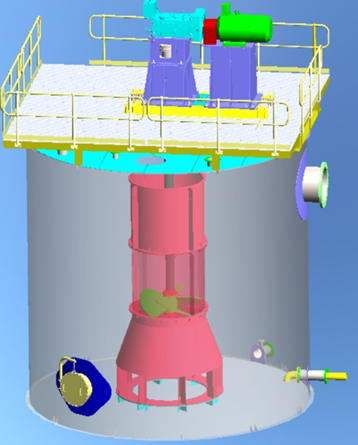

  The circulation barrel barrel forces the flow direction of the slurry, realizing a large-scale slurry circulation, reducing mixing dead zones, and avoiding slurry short-circuiting. The lower end of the circulation barrel is equipped with slurry distribution guide plates to prevent the slurry from rotating in the tank body and enhance the slurry shearing and mixing effect
• 03

  It has a large slurry circulation flow rate, requiring a short time to achieve uniform slurry mixing. Generally, the designed slurry circulation flow rate per minute is 1-2 times the tank body volume
• 04

  The slurry flows downward from top to bottom inside the circulation barrel and upward from bottom to top outside the circulation barrel. A "W"-shaped large circulation loop of the slurry is formed in the stirring tank, which fully mixes the slurry and reagents uniformly and keeps the minerals in a suspended state at all times
• 05

  The slurry conditioning tank for roughing operations is designed with a coarse particle discharge pipe, which discharges the coarse particles that cannot be fully suspended through the discharge pipe, avoiding coarse sand deposition in the tank

• GBK7500 Agitation Tank at a CREC Mine

• GBK8000 Agitation Tank at a China Gold Mine
