HAT Cyanidation Leaching Agitation Tank Overview

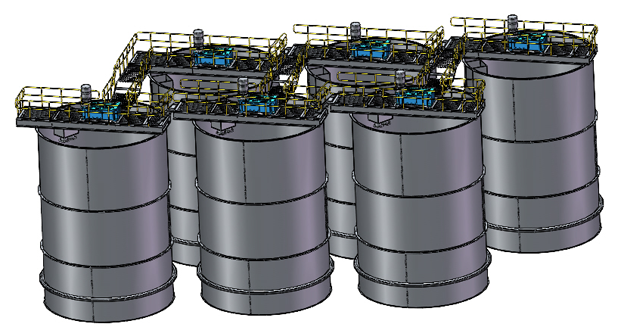

The HAT cyanidation leaching agitation tank is primarily used for cyanidation leaching of gold ore and serves as the core equipment for CIL (Carbon-in-Leach) and CIP (Carbon-in-Pulp) gold extraction processes. The tank diameter ranges from 4 to 18 m, with a single-tank effective volume of 4 800 m³.



Applications：
Cyanidation leaching and leaching adsorption of gold ore; applicable when grinding fineness is 200 mesh with 70% or more passing, and pulp density is below 45%.
Technical Features：
  • 01

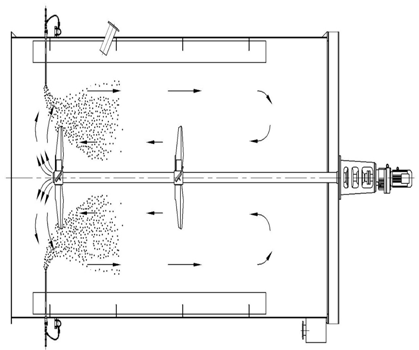

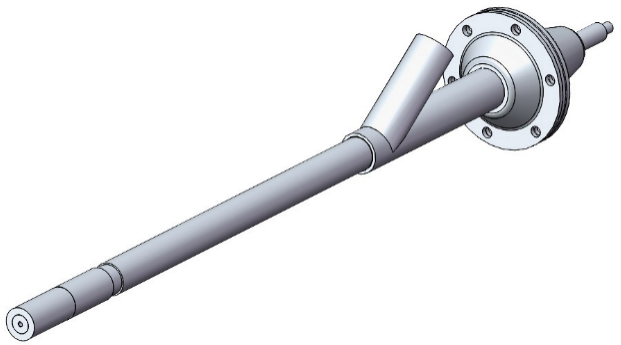

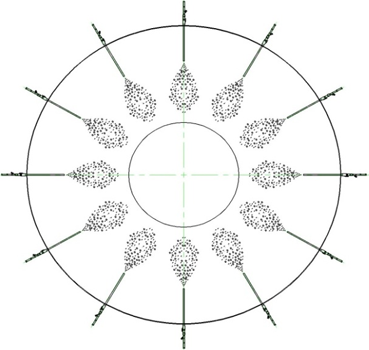

    External multi-point pressure jet aeration system with small bubble diameter, high dispersion degree, and large dissolved oxygen capacity;
  • 02
    Efficient variable cross-section and variable angle axial flow impeller with high axial flow rate and uniform agitation mixing;
  • 03
    Air generates fine bubbles independent of impeller shearing, resulting in low impeller tip speed and low agitation power consumption;
  • 04
    Simple and efficient agitation drive system.
