The CTS type wet permanent magnet drum magnetic separator is a concurrent-flow drum separator used for the wet separation of coarser particles in grinding circuits. It is widely used in iron ore mines both domestically and internationally.BGRIMM developed China's first wet permanent magnet drum magnetic separator, which has made considerable progress over the years.Currently, the Ф1200 mm series magnetic separators have been widely used, and the Ф1500 mm series is gradually becoming the preferred magnetic separation equipment for newly built concentrators.

• 01

  It adopts high-quality strontium ferrite or high-performance magnetic steel
• 02

  Its drum surface magnetic field strength ranges from 100 mT to 600 mT
• 03

  Large throughput and convenient operation
• 04

  Its concurrent tank structure is suitable for a wide range of ore particle sizes and has strong slurry throughput capacity
• 05

  It is available in a series of specifications, with a drum diameter of φ750 mm to φ1500 mm and a drum length of 1000 mm to 5000 mm

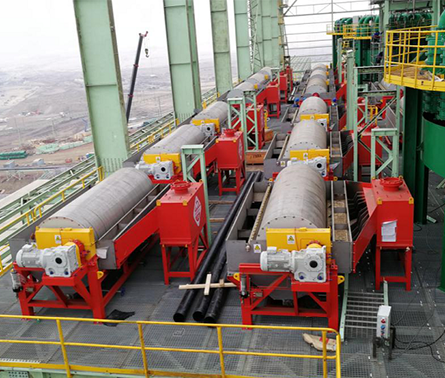

• CTS1545 (1,500x4,500 mm) Large Drum Magnetic Separator Applied in the First Stage Large-Particle Wet Pre-selection at Shougang Group's New Peru Iron Mine Area
