CTB Series Wet Drum Magnetic Separator

The CTB wet permanent magnet drum magnetic separator is a counter-rotation tank structure magnetic separator, which has been widely used in iron ore mines at home and abroad..BGRIMM developed China's first wet permanent magnet drum magnetic separator, which has made considerable progress over the years.Currently, the Ф1200 mm series magnetic separators have been widely used, and the Ф1500 mm series is gradually becoming the preferred magnetic separation equipment for newly built concentrators.

Applications：

It is used for the wet roughing and cleaning of magnetic ores such as magnetite, pyrrhotite, roasted ore, and ilmenite

Technical Features：

01
It adopts high-quality strontium ferrite or high-performance magnetic steel
02
Its drum surface magnetic field strength ranges from 100 mT to 600 mT
03
Large throughput and convenient operation
04
Its counter-rotation tank structure balances ore recovery rate and concentrate grade
05
It is available in a series of specifications, with a drum diameter of φ750 mm to φ1500 mm and a drum length of 1000 mm to 5000 mm

Classic Cases：

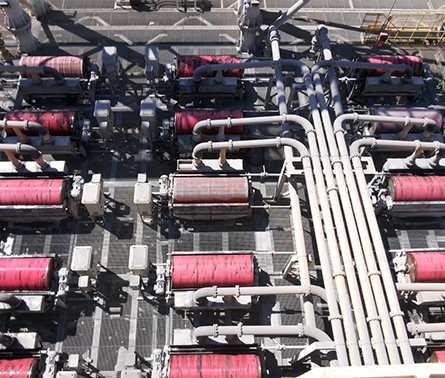

CTB1545 (1,500x4,500 mm) Large Drum Magnetic Separator Applied in the New Area of Shougang Group's Peru Iron Mine for Weak Magnetic Roughing and Cleaning Processes.

CTB Series Wet Drum Magnetic Separator

CTB1545 (1,500x4,500 mm) Large Drum Magnetic Separator Applied in the New Area of Shougang Group's Peru Iron Mine for Weak Magnetic Roughing and Cleaning Processes.
