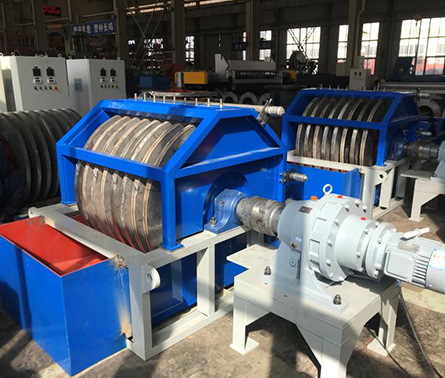

HLW Full-Disc-type Recovery Magnetic Separator

The HLW disc-type magnetic separator has various magnetic field strength and specification configurations according to recovery needs. The disc diameter ranges from Ф1000 mm to Ф2000 mm, and the number of discs can be configured as required.



Applications：
It is suitable for the high-efficiency recovery of magnetic iron from large-volume, low-concentration tailings slurry with a wide particle size distribution. It is widely used for the efficient recovery and utilization of magnetic iron from wastes discharged by concentrators, coal preparation plants, steel plants, and sintering plants in industries such as metallurgy, mining, non-ferrous metals, building materials, power generation, and coal.
Technical Features：
  • 01
    It acts directly on magnetic particles, featuring a wide magnetic field action area and high magnetic force
  • 02

    The surface of the magnetic system is protected by a non-magnetic stainless steel plate to prevent wear
  • 03

    It adopts high-performance magnetic blocks, and the demagnetization rate of the magnetic system is less than 3% within 10 years
  • 04

    It has a large volumetric throughput, several times that of conventional drum magnetic separators
  • 05

    It has a long effective separation zone, and the magnetic particle recovery rate is 5-10% higher than that of conventional drum magnetic separators
  • 06

    Low energy consumption, high operating rate, lightweight, and small footprint
