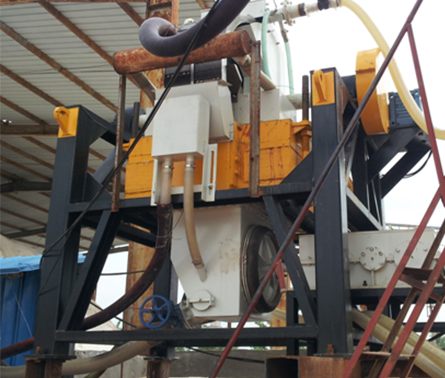

PVM Type Permanent Magnet Vertical Ring High Gradient Magnetic Separator

The PVM permanent magnet vertical ring high-gradient magnetic separator is a permanent magnet upgraded product of the pulsating electromagnetic vertical ring high-gradient magnetic separator. Its magnetic source is a permanent magnet, requiring no additional excitation power supply or independent cooling device. Compared with electromagnetic products, its operating power consumption is significantly reduced, and the equipment reliability is improved. The specification range of this type of equipment is φ500 mm to φ2000 mm.



Applications：

(1) It is suitable for iron removal and purification of non-metallic minerals such as quartz sand, kyanite, feldspar, kaolin, zircon sand, sillimanite, andalusite, potassium feldspar, rutile, and fluorite.(2) It is also suitable for the wet enrichment of magnetic minerals such as hematite, specularite, limonite, vanadia-titania magnetite, manganese ore, and cobalt ore.
Technical Features：
  • 01
    The perfect combination of high magnetic field strength and large magnetic field gradient ensures a strong magnetic force
  • 02
    It has low power consumption and a stable permanent magnet system, saving more than 95% energy compared with similar electromagnetic equipment
  • 03
    Compared with electromagnetic equipment, it has no cooling water device, featuring reliable performance and strong adaptability
  • 04
    The ring rotational speed and pulsation frequency can be intuitively and conveniently adjusted, facilitating the achievement of good separation indicators
  • 05
    The multi-level alternately embedded induction medium improves the capture probability of magnetic materials
