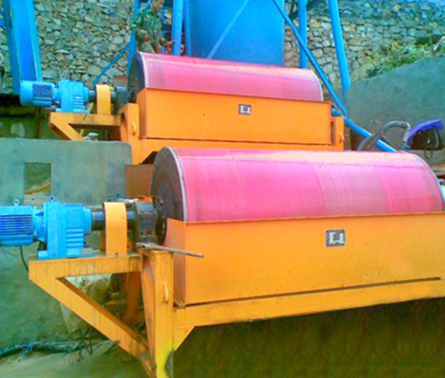

CTG Type Drum Magnetic Separator with Discharge Roller

The CTG roller discharge drum magnetic separator is optimized on the basis of the traditional counter-current magnetic separator, with improved magnetic circuit structure and discharge method, solving the difficulty of iron removal from fine-grained, low-content, and weakly magnetic minerals. The diameter of this type of magnetic separator ranges from 600 mm to 1500 mm, and the length ranges from 1000 mm to 3000 mm



Applications：


It is suitable for wet iron removal from non-metallic minerals and non-ferrous metals smaller than 3 mm, and also for the recovery of weakly magnetic minerals
Technical Features：
  • 01
    Its magnetic field strength ranges from 120 mT to 800 mT
  • 02
    It is equipped with a roller discharge device, enabling clean ore discharge and saving flushing water
  • 03
    It can ensure that the concentration of the non-magnetic product remains basically unchanged, enabling it to directly enter the subsequent operations
  • 04
    It has the advantages of saving thickening and dewatering equipment, simplifying process configuration, reducing investment, and avoiding the loss of fine-grained valuable minerals
