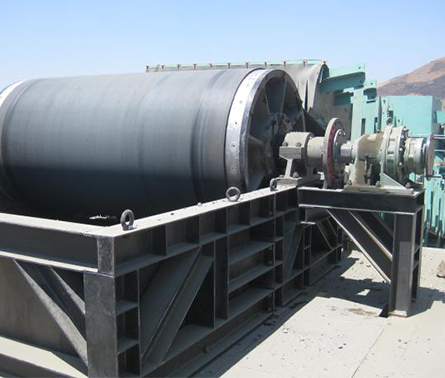

CT Permanent Magnet Pulley Magnetic Separator

The CT permanent magnet pulley magnetic separator is currently the most widely used dry magnetic separation equipment, with large processing capacity and wide adaptability. It is generally used in conjunction with a belt conveyor, or can be used as a standalone unit.The equipment is available in a series of specifications, with a drum diameter range of 520 mm to 1600 mm and a drum length range of 500 mm to 3500 mm.



Applications：
It is suitable for pre-selection and waste rejection in the coarse, medium, and fine crushing of ferrous metal ores such as magnetite and vanadia-titania magnetite; large-scale recovery of magnetite from stripped surrounding rock or waste rock in iron ore mining; removal of magnetic materials in industries such as non-ferrous metals, non-metallic minerals, and building materials; and steel slag separation operations.
Technical Features：
  • 01
    It adopts a high-performance composite magnetic system, providing high magnetic field strength, large magnetic field depth, and stable performance
  • 02
    Large throughput (up to 10,000 t/h) and wide separation particle size range (0-450 mm)
  • 03
    It has a reliable mechanical structure, suitable for harsh operating conditions with large throughput and high loads
  • 04
    Its magnetic drum speed is adjustable to meet the separation requirements under different operating conditions
  • 05
    Magnetic adjustment via a gear reducer, making it reliable, simple, and labor-saving
  • 06
    Flexible configuration to meet site requirements
