The HMDF heavy medium recovery magnetic separator is specially designed for the high-efficiency recovery of fine magnetic heavy medium in heavy medium recovery processes. This type of magnetic separator is characterized by small circumferential magnetic field fluctuations and large magnetic field depth. It is suitable for applications requiring high recovery rate and very low loss rate of magnetic minerals, and has been widely used, especially in the heavy medium recovery processes of coal mines and spodumene mines.

• 01


  It adopts a fully stainless steel sealed magnetic system;
• 02


  It has a large magnetic field depth, which can ensure sufficient magnetic force at the far magnetic end of the tank bottom;
• 03


  Its slurry level is adjustable, and the separation time can be extended as needed;
• 04


  It adopts through-shaft transmission and an external bearing structure, enabling lubrication without shutdown;
• 05


  Its magnetic heavy medium recovery rate can reach 99.9%;
• 06


  The equipment is serialized, with a drum diameter of φ900 mm to φ1200 mm and a drum length of 1200 mm to 4500 mm

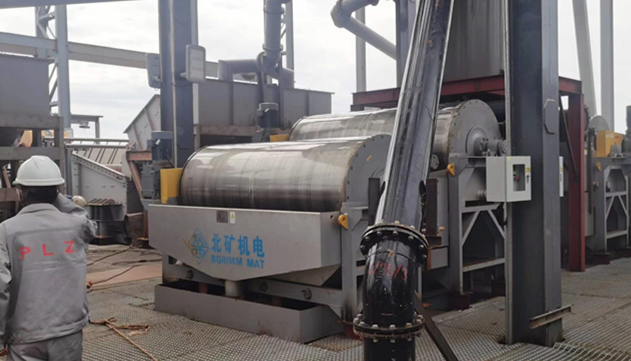

• Huayou Holding Group's Zimbabwe Project XCTN1236/1230
