The magnetic arc is a high-efficiency arc-shaped iron removal device, mainly composed of a lifting drum, a magnetic system, an iron-receiving trough (or spiral forced discharge mechanism), and a base When the mill discharges, ferromagnetic substances such as broken steel balls in the slurry are captured by the magnetic field and adsorbed onto the inner surface of the lifting drum. As the lifting drum rotates and lifts, when they reach the non-magnetic area at the top, they fall into the funnel-shaped iron-receiving trough (or spiral forced discharge mechanism) under the action of inertia and gravity and are discharged, realizing the separation of materials from broken steel balls.

• 01


  Advanced and reasonable magnetic circuit design: It uses advanced mathematical software to simulate the magnetic circuit, design the magnetic system, and reasonably distribute the magnetic induction intensity, ensuring good iron removal effect and convenient iron discharge.It also minimizes the wear degree of the drum wall caused by broken steel balls during the separation process
• 02


  It adopts high-magnetic-energy-product rare-earth permanent magnet material NdFeB as the magnetic source, featuring stable performance, energy saving and environmental protection, and can be effectively used for a long time without remagnetization
• 03

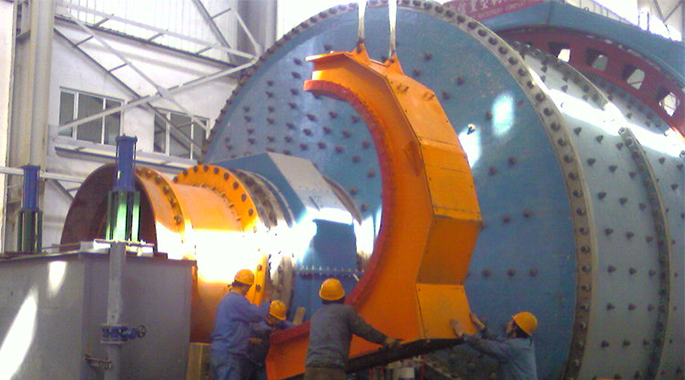

  Reasonable lifting drum design: It is bolted to the mill, facilitating on-site installation and avoiding abnormal slurry leakage.It is lined with a wear-resistant layer to extend the service life of the lifting drum.
• 04


  The water spray discharge method avoids the ore carry-over caused by the rotation of the lifting drum
